What Is Dense Wavelength Division Multiplexing (DWDM)?

Fatbeam

Modern businesses are constantly seeking ways to handle data faster and more efficiently. If you've been exploring options to supercharge your network capabilities, you've likely checked out fiber internet. Fiber offers businesses unparalleled speed, reliability, and scalability that traditional networks can't match.

One technology that makes fiber internet such a great connectivity solution for businesses is DWDM. But what exactly is Dense Wavelength Division Multiplexing, and how can it benefit your business? Read on to learn how DWDM works and why it could be the key to unlocking your network's full potential.

What Is DWDM?

Dense Wavelength Division Multiplexing (DWDM) is an advanced optical fiber technology that increases the bandwidth capacity of existing fiber networks. A DWDM system works by combining multiple data signals from different sources and transmitting them over a single fiber pair, all while maintaining complete separation of these data streams.

The "dense" in DWDM refers to its impressive capacity to squeeze up to 80 different wavelengths of light within the same fiber cable. Each of these wavelengths acts as its own superhighway, carrying data streams at mind-boggling speeds. For businesses like yours, this means handling more data, supporting more users, and running more applications without needing to dig up the streets to lay new fiber cables.

DWDM squeezes up to 80 wavelengths within the same fiber cable, so you can add more bandwidth without installing new infrastructure.

How Does DWDM Work?

DWDM systems leverage the properties of light to create multiple data channels within a single fiber optic cable.

This process begins with lasers generating light signals at separate wavelengths. Each of these wavelengths corresponds to a specific color in the infrared spectrum, although they're invisible to the human eye. These light signals are then combined and sent over a fiber optic cable.

The light maintains its specific wavelength as it travels through the fiber, allowing different data streams to coexist without interfering with each other. At the receiving end, a device called a demultiplexer separates the multiple wavelengths, allowing the original signals to be retrieved and processed.

Unlike its counterpart, Coarse Wavelength Division Multiplexing (CWDM), DWDM can transmit data over hundreds or even thousands of miles without substantial optical signal degradation. DWDM solutions achieve this by using amplifiers that boost the strength of the light signals at regular intervals along the fiber path.

Components of DWDM Systems

To help you fully grasp how DWDM works its magic, let's break down the essential components that make up a typical DWDM system:

  • Transmitters: Transmitters, often in the form of lasers, generate light signals at specific wavelengths. Each optical transmitter is responsible for a single channel of data.
  • Multiplexer: The multiplexer combines each DWDM wavelength from different transmitters into a single beam that can travel through the optical fiber.
  • Optical Fiber: Fiber optic cables are the long, thin strands of glass or plastic that serve as the pathway for the light wavelengths. Modern optical fibers can carry these signals for hundreds of miles with minimal loss of quality.
  • Optical Amplifiers: Wavelength signals naturally weaken as they travel long distances. The optical amplifier boosts these signals at regular intervals, ensuring they remain strong enough to be accurately read at the destination.
  • Demultiplexer: At the receiving end, the demultiplexer separates the combined light beam back into its individual wavelengths. It's essentially the reverse of what the multiplexer does at the start of the journey.
  • Optical Receivers: Optical receivers detect the light wavelengths and convert them back into electrical signals that can be processed by digital devices like computers.
  • Optical Transponders: Optical transponders act as both transmitters and receivers. They can take incoming electrical signals, convert them to optical signals for transmission, and then convert received optical signals back to electrical form.
  • Optical Add/Drop Multiplexers (OADMs): OADMs allow specific wavelengths to be added or removed from the fiber at intermediate points along the network without disturbing other wavelengths.

The beauty of DWDM lies not just in its capacity but in its scalability and flexibility. With the right DWDM system, businesses can adapt their optical network capabilities as their needs grow and change.

DWDM systems let businesses adapt their fiber network capabilities as their needs grow.

CWDM and DWDM: What's the Difference?

While both CWDM and DWDM are wavelength division multiplexing technologies, they have some significant differences that make them suitable for different business applications. Some of the biggest differences between these technologies include:

Channel Capacity

CWDM systems are like cozy carpools, typically accommodating up to 18 wavelength channels. A DWDM system is more like a bustling train station, handling 80 or more different wavelength channels on a single optical fiber. If your data needs are massive, DWDM is your ticket to ride.

Wavelength Spacing

CWDM spaces wavelengths about 20 nanometers apart, which is huge in the world of optical technology. DWDM squeezes wavelengths much closer together, often as small as 0.8 nanometers. This tighter wavelength spacing is what allows DWDM to support so many more channels.

Distance

CWDM is perfect for short trips, usually up to about 80 kilometers. DWDM is the long-distance champion, capable of transmitting data hundreds or even thousands of kilometers thanks to optical amplifiers.

Cost and Complexity

CWDM systems are generally simpler and less expensive to implement. They use less sophisticated components and are more tolerant of wavelength drift. DWDM systems require more precise (and pricier) components to manage their tightly packed wavelengths.

Applications

CWDM is often the go-to for metropolitan networks or enterprise settings where cost-effectiveness is key. DWDM shines in long-haul telecommunications and cable companies, internet backbones, and data center interconnects where massive amounts of data need to be moved over longer distances.

Passive DWDM vs. Active DWDM

When it comes to implementing DWDM technology, businesses have two main options: passive DWDM and active DWDM. Each approach has its own strengths and is suited to different scenarios.

Passive DWDM

Passive DWDM systems use unpowered optical components to manage wavelength multiplexing and demultiplexing. They are simpler, more reliable, and less expensive to implement and maintain, making them ideal for shorter distances and scenarios where keeping the electricity bill down is a priority.

Active DWDM

Active DWDM systems use powered components like optical amplifiers and transponders to manage and manipulate optical signals. This extra oomph allows active DWDM to transmit data over much longer distances and provides more advanced network management capabilities. If you need to send data across vast distances or want more control over your network, active DWDM is your go-to solution.

Metro DWDM vs. Long Haul DWDM

DWDM systems aren't one-size-fits-all. Depending on how far you need to send your data, you'll want to choose between metro DWDM and long-haul DWDM.

Metro DWDM

Metro DWDM is designed for the urban jungle, typically covering distances up to about 200 kilometers. It's perfect for connecting multiple business centers, data centers, and service providers within a city or region. Think of it as the local transit system for your data.

Long-Haul DWDM

Long-haul DWDM is built for – well, the long haul. Since DWDM is capable of spanning hundreds or thousands of kilometers, these systems form the backbone of national and international telecommunications networks. If metro DWDM is your local transit, long-haul DWDM is the cross-country express.

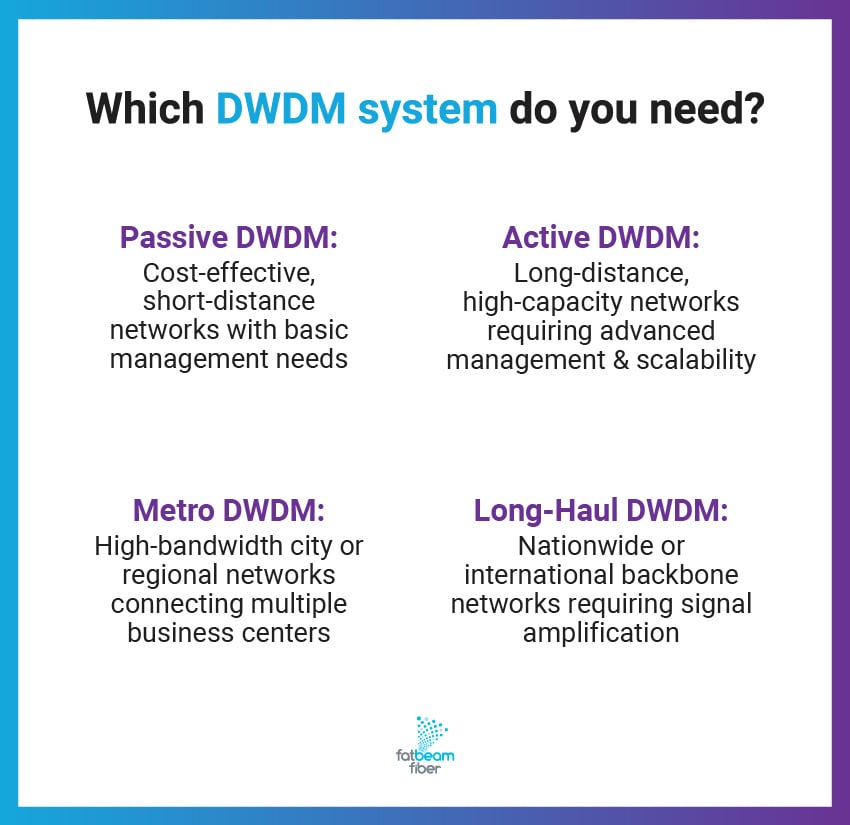

A graphic titled "Which DWDM system do you need?" with bullet points explaining what the different types of DWDM systems are ideal for.

What Are the Benefits of DWDM for Businesses?

DWDM isn't just about moving data faster; it's about transforming how your business operates in the digital world. Here's a quick rundown of how DWDM can benefit your business:

  • Bandwidth Increase: DWDM can multiply your network's capacity by up to 80 times, so you can handle exponentially more data traffic without the need for extensive infrastructure upgrades.
  • Cost-Effective Scaling: DWDM technology lets you make the most of your existing optical networks so you can grow your network capacity without the hefty price tag of new infrastructure.
  • Future-Proofing: DWDM provides a flexible foundation that can adapt to your evolving needs as new technologies emerge and data requirements grow.
  • Enhanced Network Reliability: DWDM allows you to distribute your data across more channels, reducing the impact of any single point of failure.
  • Long-Distance Data Transmission: DWDM's ability to maintain optical signal strength over long distances opens up new possibilities for connecting geographically dispersed offices or data centers.
  • Flexibility: DWDM systems can be reconfigured on the fly, allowing you to allocate bandwidth where and when you need it most.
  • Support for Multiple Protocols: DWDM can run different types of data traffic (voice, video, internet) simultaneously, simplifying your network architecture.
  • Reduced Latency: DWDM reduces latency by optimizing the way data travels through your network, resulting in faster data transfer and improved app performance.

In essence, DWDM is like giving your business a superpower. It allows you to handle more data, reach farther, and operate faster, all while keeping your network infrastructure lean and mean.

DWDM systems can be reconfigured on the fly, allowing you to allocate bandwidth where and when you need it most.

Harness the Power of DWDM With Fatbeam Fiber

Whether you're looking to connect multiple offices across a city, link data centers in different states, or establish high-speed connections with partners around the globe, DWDM offers the capacity, speed, and reliability to meet your needs.

At Fatbeam Fiber, we deliver cutting-edge fiber solutions that leverage technologies like DWDM to keep your business performing optimally. From Dedicated Internet Access (DIA) to dark fiber and beyond, we offer a comprehensive suite of services to meet your unique connectivity needs.

Trust Fatbeam to deliver:

  • Stringent SLAs: We take the anxiety out of managing your network with SLAs that guarantee 99.99% uptime, 55 ms latency, and 2 ms network jitter.
  • Burstable Bandwidth: With DIA, you get the bandwidth you purchase 100% of the time for one fair, fixed price.
  • Synchronous Speeds: Maximize efficiency and upload as fast as you download with symmetrical fiber internet.
  • High Throughput: Your traffic stays on our high-capacity backbone network with zero oversubscription for ultimate reliability.

Ready to harness the power of fiber internet for your business? Reach out to Fatbeam today to get started.
